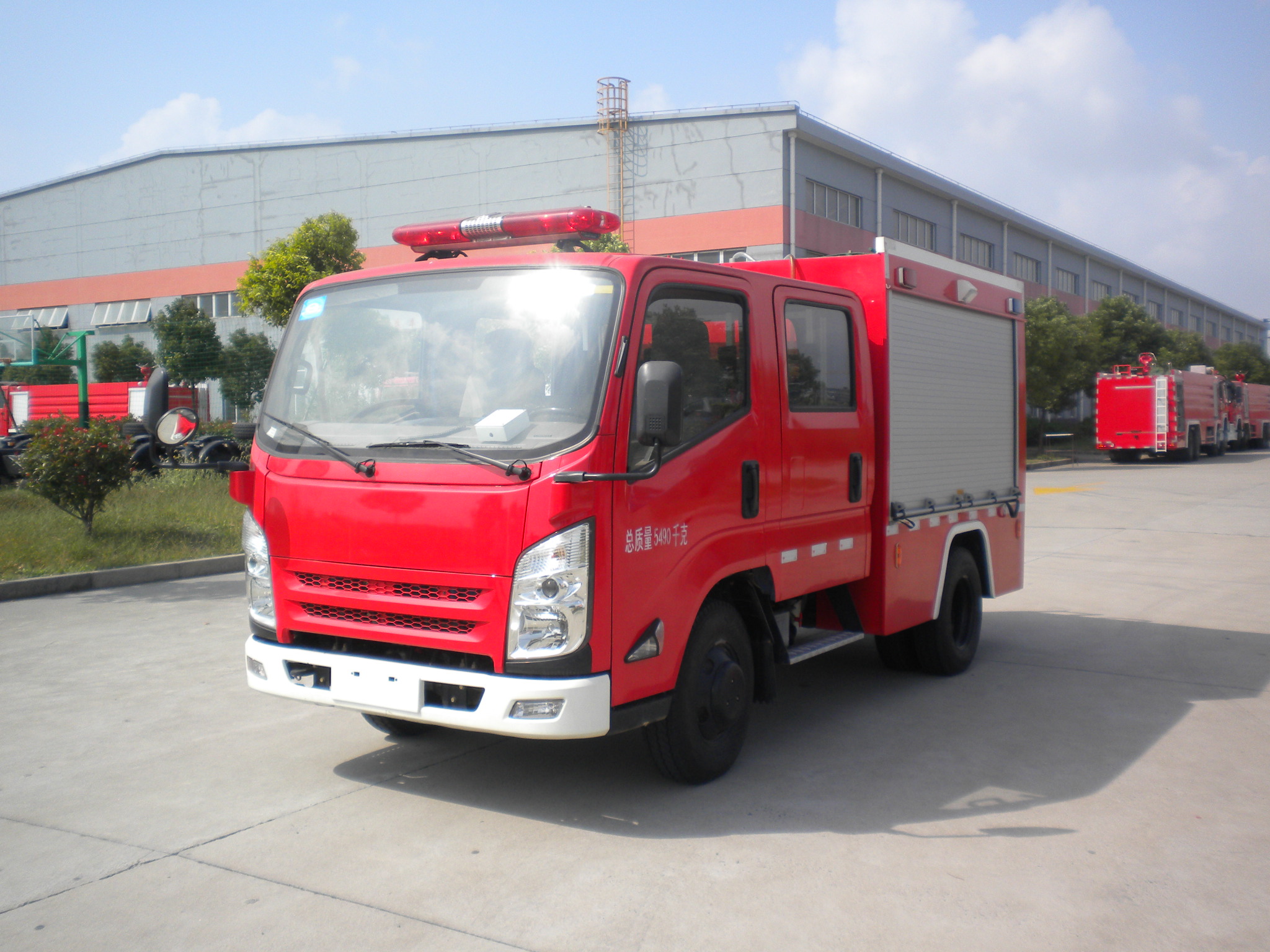

Light Duty Large Space Cab Water Tanker Fire Truck 4x2 Drive With 100W Alarm System
Vehicle
| Dimension (L×W×H) | 5080×1960×2510(5210X1970X2570)mm |
| Gross weight | 5480kg |
| Complete vehicle shipping mass | 3680kg |
| Extinguishing agent capacity | Water: 1575L |
| Seat (inc. driver) | 3 |
| Max. power | 90kw/3200rpm |
Chassis
| Manufacturer | JMC |
| Model | JX1053TSB24 |
| Drive type | 4x2 |
| Cab | Double row 1+1+1 |
| Wheelbase | 2750mm |
| Chassis net weight | 2312kg |
| Max. speed | 90km/h |
| Max. allowable load | 5500kg |
| Min. turning diameter | ＜10.8m |
| Engine type | In-line four-cylinder, pressure combustion, high pressure common rail, inter-cooling, electronic control, four-stroke |
| Model | JX4D24A4H |
| Max. power | 90kW/ 3200rpm/min |
| Max. torque | 320 Nm /1600~2200 r/min rpm |
| Emission standard | China IV |
| Clutch | diaphragm ring |
| Gearbox model | 6MTI420,Manual |
Electrical system
The main lights in the cab at the top of the long row of lights, configure the 100W alarm control system; a strobe lights installed on both sides and the middle of each compartment
Painting
Red paint: cab, body (shutter doors, except decorative strip)
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
