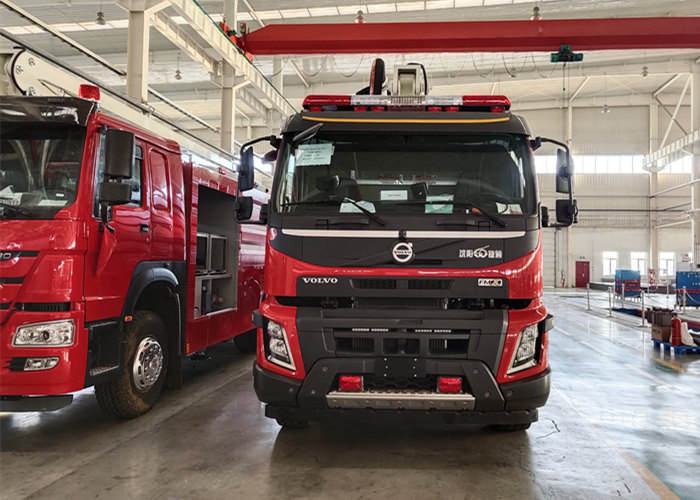

Heavy Duty 8x4 Drive Rescue Water Tanker Fire fighting Truck with Crew Room
Chassis
- Steering: Right-hand drive, hydraulic power assisted steering wheel; 6x4.
- Seats: 6 seats incl. driver
- Fuel tank capacity: min. 150L
- Electric system: 24V
- Battery: 2 x 12V
- Front wheel single tyres: as per manufacture standard
- Rear wheel twin tyres: as per manufacture standard
- Tires: 02 at front + 08 at rear axle # in total 10.
Chassis
| Manufacturer | Sinotruk HOWO |
| Model | ZZ5207M4617D5 |
| Drive type | 4x2 |
| Cab | Four door lengthen cab |
| Wheelbase | 4600mm |
| Max. speed | 100km/h |
| Min. turning diameter | ≤20m |
| Approach angle | 16° |
| Departure angle | 14° |
| Engine type | Pressure combustion, In-line six-cylinder, water cooling, inter-cooling, direct injection diesel engine |
| Model | D10.28-40 |
| Max. torque | 1190N.M |
| Emission standard | China IV |
| Clutch | pull type diaphragm |
| Gearbox | Manual, 10 forward gear |
Pump drive system
| PTO | Sandwich type |
| Model | YTQ600F |
| Manufacturer | YANGZHONG |
| Transmission shaft | High balance precision transmission shaft, use intermediate support connection |
Fluid tank
| Capacity | Water: 6000L Foam: 2000L |
| Material | High quality stainless steel 304 |
| Structure | Total side girder structure |
| Device | 2 ingate 1 overflow device 2 liquid level sensor 2 DN40 drain outlet with valve 4 DN80 filling pipe end |
| Technical requirements | Conform to rule GA39.4-92 |
FAQ:
1. Q:Are you a factory or a trade company?

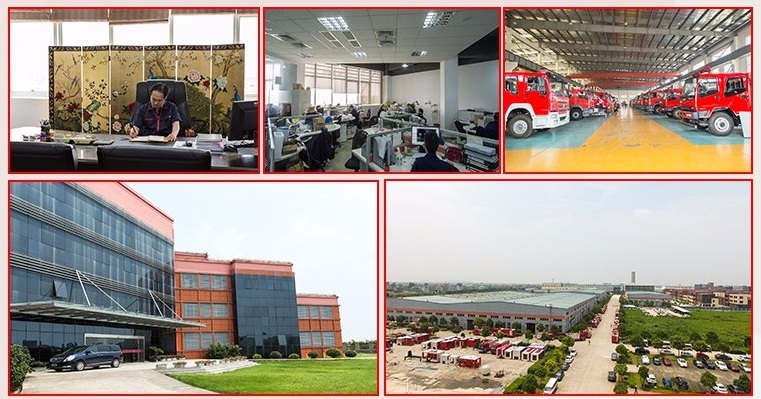

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q: What's the delivery time?
A: 1) 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
2) ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
3) European brand chassis 9 months upon receipt of advance deposit.
Any other questions, please do not hesitate to contact with us.
