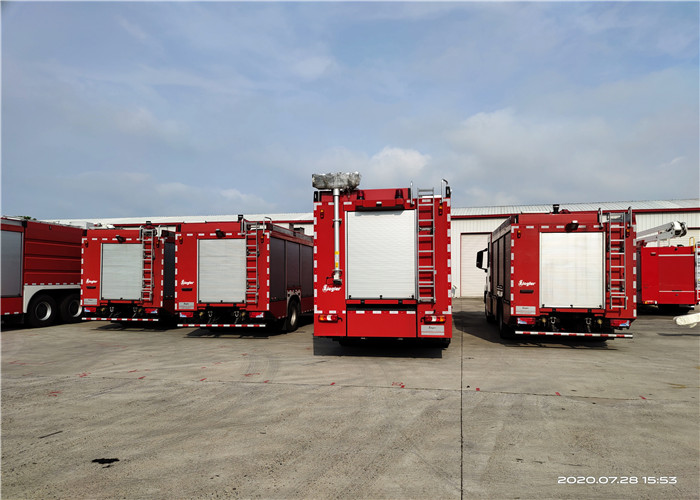

Four Stroke 4×2 Anti Drop 6000L/M Q235A Foam and Water Tanker Fire Truck

Product Categories

Shanghai Jindun special vehicle Equipment Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Four Stroke 42 Anti Drop 6000LM Q235A Foam and Water Tanker Fire Truck
Brand: Jindun
Price: 1 USD

Brand Name : Jindun

Model Number : PM120M

Certification : ISO9001/CCC

Place of Origin : SHANGHAI,CHINA

MOQ : 1 UNIT

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 90 days after sign contract

Supply Ability : 350 units/year

Packaging Details : Exporting standard package or customized packing

Material : Q235A steel

Flow : 6000L/M

Impeller Material : Gunmetal

Drive : 4x2

Priming time : ≤80s

Manufacturer : US HALE

Foam range : ≥55m

water range : ≥60m

Product name : Foam and water tanker fire truck

Contact Now

Four Stroke 4×2 Anti Drop 6000L/M Q235A Foam and Water TankerF Fire Truck

Chassis

Brand	MAN (MADE IN GERMANY)
Chassis Model	TGM18.290 4X2 BB
Power	213KW
Steering wheel	right hand drive
Chassis weight	5645Kg
Full total mass	17600Kg
Drive Type	4 × 2
Wheelbase	4425 mm
Engine Model	MAN D0836LFL30
Number of cylinders	6
Type	4-stroke, water-cooled, four-valve, diesel, turbocharged, intercooled, electronically controlled
Engine power	213/2300 kw/rpm
Displacement	6871mm
Emission standard	Euro 4 standard
Torque	1150/1200 ~ 1750 Nm/Rpm
Transmission type	ZF 9S-1310 OD manual transmission
Number of gears	9 + 1
Clutch	Monolithic, dry type, with buffer springs, hydraulicPressure booster
PTO type	ZF N109 / 10b
Dimensions	≤8500X2500X3500mm

Equipment room

Side girder	Structure characteristics:
Side girder	Uses the high quality steel welded together, between the two longitudinal beams, there are several beam connects to the longitudinal beams with equal strength. The side girder connect to installation parts with high strength bolt, ensure the original car girder stability and power equality, improve the service life of the girder, reduced the possibility of the distortion of the installation parts caused by the deformation.
Equipment box and pump room	Material: Q235A steel & aluminum alloy.
	Structure: Welded, the join-structure,skinned,bottom plate and interior plate adopts the anodized LF2 rust-prevention flat aluminum plate.
	The door of equipment box and pump room: Using lightweight high quality aluminum alloy,with shutter,lightweight and reliable,the back door of the pump room adopts flap-up door for shading the weather and preventing falling objects.
	Internal structure:Inner frame adopts aluminum lap technology,to farthest improve space utilization and variability, equipment box can be configured all kinds of sliding brackets and the dragging plates, etc.,according to the requirements of customers for convenient accessing.
Pedal plate	Location: At the bottom of the shutter.
	Material: Steel frame covered by aluminum alloy
	decorative pattern plate
	Structure: Adopt the gas springs plus shutter fasten, safe and Reliable, each petal plate bearing ≥150Kg.

Equipment layout principles

According to combat programming and combat development design equipment integration.
According to human body engineering principle design all kinds of equipment frames.
According to using logic and frequency of use place equipment.
1-2 action can take any equipment standing on the ground or pedal.
Fixed all equipment with rust-proof, vibration-proof, anti-drop, scratch-proof special clamp.

Four Stroke 4×2 Anti Drop 6000L/M Q235A Foam and Water Tanker Fire Truck
